Signature Silicon Coated Fiberglass Cloth
Our Products Range
Signature Silicon coated fiberglass Cloth (DSZSFG0.6)
Silicon Coated Fiberglass Cloth (DSZSFG0.6) is a high-performance material made by coating premium fiberglass cloth with specially formulated silicone rubber. This combination offers excellent thermal insulation, water and chemical resistance, flame retardancy, and mechanical strength, making it ideal for use in harsh industrial environments.
The silicone coating enhances the fabric’s flexibility, durability, and resistance to abrasion, UV, oil, and moisture, while maintaining the inherent heat resistance of fiberglass. It is widely used in fire curtains, welding blankets, expansion joints, insulation covers, and protective equipment across industries such as automotive, marine, metalworking, and construction.
It is available in single and double side coatings. The single side coated fabric offers excellent heat resistance and protection on one side, ideal for insulation and protective covers. The double side coated version provides enhanced durability, moisture resistance, and thermal insulation, suitable for harsher industrial environments requiring protection on both sides.
Specification Of Silicon coated fiberglass Cloth
- Working Temperature Range : 650 °C Melting Point: 900 °C
- Excellent water, oil, and chemical resistance, suitable for harsh industrial environments
- Flexible, durable, and tear-resistant; maintains integrity in mechanical stress
- Thickness: 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1.0 mm, 1.2 mm, 2.0 mm, 3.0 mm
- Weave: Plain, Satin
- Weight range: 400 GSM to 1500 GSM
- High abrasion resistance, anti-slip surface, and superior electrical insulation
- Low smoke emission, non-toxic, and odor-free during heat exposure
- Standard roll width: 1000 mm / 1200 mm / 1270 mm (custom sizes available)
- Flame retardant and weather resistant – ideal for both indoor and outdoor use
Applications
- Firefighting apparel
- Fabric expansion joints and compensators
- Fabric ductwork connector
- Noise control barriers
- Weather-proof or moisture-proof covers
- Protective air cargo covers
Features
- Heat Resistance
- Durability
- Waterproof
- Easy Maintenance
- Cost-Effective
- Long Lifespan
Inquire Here
Single Side Silicon Coated Fiberglass Fabric
This fabric has a silicone coating on one side, offering excellent heat resistance, water repellency, and chemical protection while retaining the flexibility and strength of fiberglass. It is ideal for applications like welding blankets, insulation covers, and protective curtains requiring durable one-sided protection.

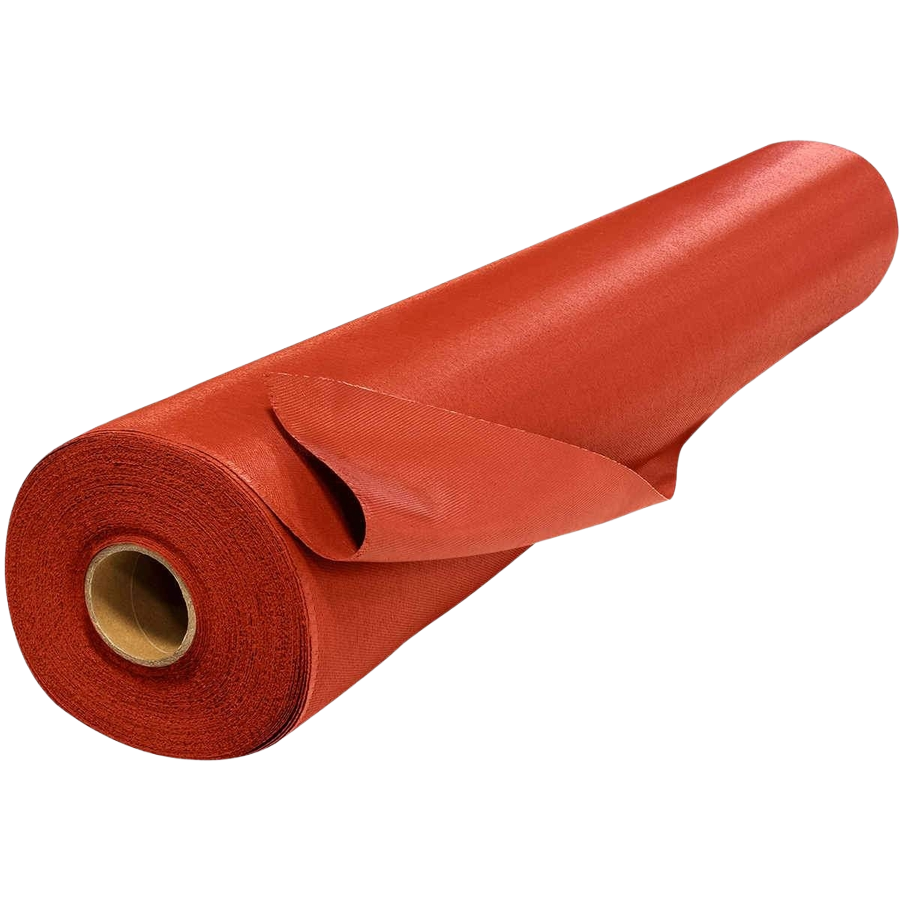

Double Side Silicon Coated Fiberglass Fabric
This fabric is coated with silicone on both sides, offering superior heat resistance, moisture protection, and enhanced durability. It is ideal for demanding applications like fireproof covers, thermal insulation blankets, and industrial curtains that require protection from both sides.
