Aluminium Coated Fiberglass Insulation Cloth combines durable fiberglass fabric with reflective aluminum coating for superior heat resistance. It effectively reflects radiant heat while providing protection against sparks and molten metal. Ideal for industrial, automotive, and marine insulation applications.
Signature Graphite Coated Fiberglass Insulation Cloth
Our Products Range

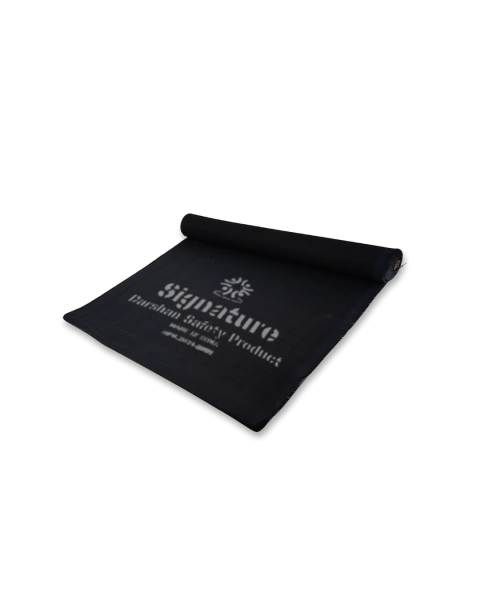

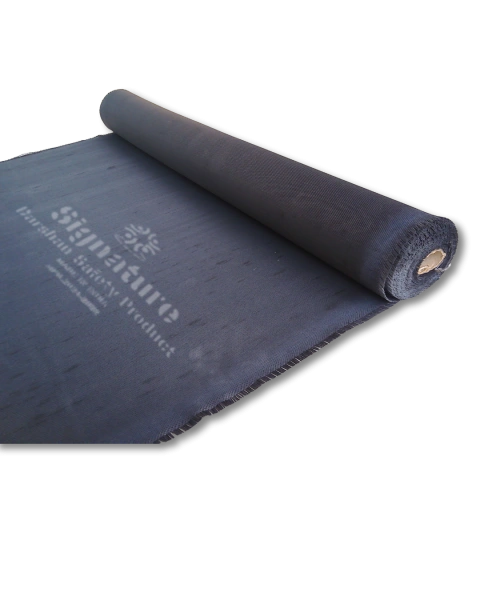

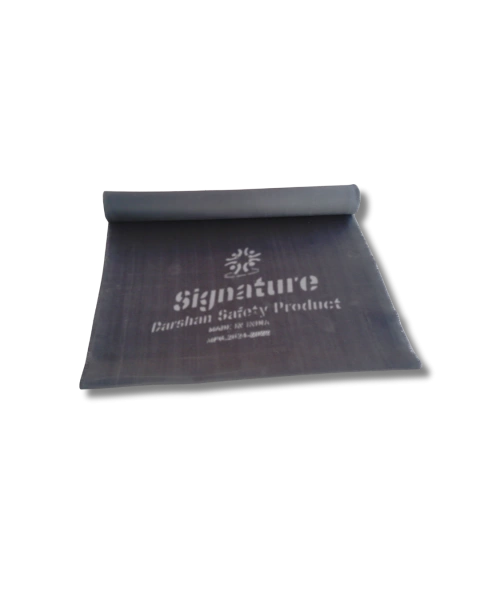

Signature Graphite Coated Fiberglass Insulation Cloth
Graphite Coated Fiberglass Insulation Cloth is a premium-grade thermal insulation material designed for high-temperature and harsh industrial environments. This cloth is made from high-quality fiberglass fabric coated with a specially formulated graphite layer, enhancing its resistance to heat, abrasion, and chemical exposure.
The graphite coating improves the fabric’s ability to withstand continuous temperatures up to 700°C, while also providing excellent resistance to molten metal splashes, sparks, and flames. It is ideal for welding blankets, heat shields, expansion joints, and insulation jackets used in steel plants, foundries, refineries, and heavy manufacturing.
Specification Of Graphite Coated Fiberglass Insulation Cloth
- Heat resistance up to 700°C (continuous)
- Graphite coating enhances thermal resistance and protects against molten metal splashes and slag
- Made from premium-grade fiberglass yarn, coated with graphite for improved abrasion and chemical resistance
- Thickness range: 0.8 mm to 3 mm
- Standard widths: 1000 mm, 1220 mm (custom widths available)
- Roll lengths: 30 m / 50 m (custom lengths or cut sizes available)
- Excellent thermal insulation, flame resistance, and low smoke emission
- Resistant to chemicals, oils, and most acids/alkalis
- High mechanical strength and tear resistance, even in high-heat environments
- Non-toxic, asbestos-free, and environmentally safe
- Conforms to ASTM C1185, EN 13501, ISO 11612, and RoHS standards
Applications
- Welding Blankets & Curtains
- Heat Shields & Thermal Barriers
- Expansion Joints & Bellows
- Removable Insulation Jackets & Pads
- Chemical & Petrochemical Industries
Features
- Enhanced Flame and Spark Resistance
- Excellent Chemical Resistance
- Durable and Abrasion Resistant
- Flexible and Easy to Fabricate
- Anti-Stick Surface
Inquire Here
